How to set up your Roku Outdoor Wired Camera (Model CW20005)

What you need for setup

In addition to your Roku Outdoor Wired Camera SE and included accessories, you will need the following:

• Power: Use the included 12.5-foot weatherproof cable and power adaptor to connect your camera to a GFCI power outlet for protection against short circuits from water, etc.
• Wi-Fi^®: Your camera needs a wireless network connection with WPA/WPA2 security standard.
• Smartphone or tablet: You will need to download and install the Roku Smart Home app for iOS^® and Android^™ to set up and control your camera.
• Philips screwdriver (optional): If you plan to mount your camera, you will need a Philips screwdriver.

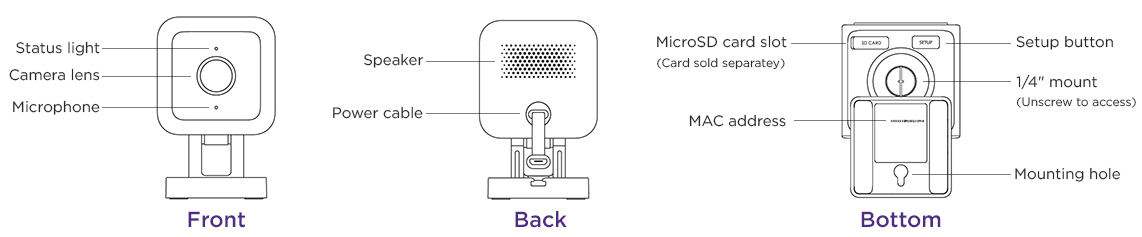

Before you begin, familiarize yourself with your outdoor camera including the location of the status light. It is also important to make note of the MAC address which is required should you need to contact Roku Customer Support. When it's time to access the setup button, turn the camera over to locate it on the underside.

Note: This model, CW20005, has two legs. For setup with Model SCS11R (one leg), see the article here.

Where to install your outdoor camera

Your outdoor camera can be installed just about anywhere outside your home with many uses, including:

• Security watch: Set your camera to record video any time sound or motion is detected.
• Pet cam: Check in on your furry companions any time you are away from home.
• Capture wildlife: Monitor your yard for all the neighborhood critters.

After you decide how you want to use your camera, be sure to choose a location within 12.5 feet of a GFCI power outlet or use an AC power extension cable that is outdoor rated. Decide whether you want to place your camera on a flat surface or mount it in an unobstructed location. The Outdoor Wired Camera is water-resistant for typical outdoor use. However, prolonged submersion or exposure to pressurized water, high-velocity water, or extreme humidity can compromise its seals, leading to potential failures, and should be avoided. For help attaching it to your house or another structure, check out some mounting tips for Roku Smart Home cameras.

Tip: If you choose a location where your camera is upside down, you can flip the image after setup is complete. Simply select your camera in the smart home app and go to Settings > Advanced settings > Rotate image 180°.

Getting started

When you are ready, power on your outdoor camera. First, attach the small end of the power adaptor to the power cable on your camera making sure not to force the connection. The connector is keyed to only fit one way. Next, plug the other end of the power adaptor into a GFCI power outlet.

You can view the tutorial video below, check out the Quick Start Guide, or follow along with the remaining steps in this article.

Quick Start Guide

Roku Outdoor Wired Camera (model CW2005)

What does the status light mean during setup?

It is important to understand what the status light means as you power on your camera and continue with the setup process.

Install the smart home app

The Roku Smart Home mobile app is a free application for iOS and Android that lets you set up, configure, and control your Roku home monitoring system, cameras, video doorbells, plugs, bulbs, and light strips. You can download the smart home app from the appropriate link below.

Connect your outdoor camera

Before you get started, make sure your smartphone or tablet is connected to your Wi-Fi network (e.g., MyNetwork_2.4GHz). Next, launch the smart home app and create a new Roku account, or enter the username and password for your existing account. After you sign in, perform the steps below to connect your outdoor camera.

With the Wi-Fi connection, your camera can record videos to the cloud with your Roku Smart Home Subscription. You also get instant recordings when motion and sound is detected, and intelligent person, pet, and object detection. Learn more about the premiere features available with your Roku Smart Home Subscription.

If your camera is installed where there is no Wi-Fi connection or the signal is poor, you can install a MicroSD card to record videos.

Using your outdoor camera

After you finish the setup process, be aware what the status light means as you learn to use your camera.

And when you want to learn more, check out some of the other great features your Roku Outdoor Wired Camera offers.

• Adjust motion and sound detection settings
• Use Rules to automate your smart home devices
• Set up event video recording and scheduling
• Talk and listen with two-way audio
• Use night vision
• Group and sort your smart home cameras
