How to set up your Roku Battery Camera

What you need for setup

Note: Battery life will vary based on device settings, use, and environmental factors.

Connect your camera

Before you get started, make sure your smartphone or tablet is connected to your Wi-Fi network (e.g., MyNetwork_2.4GHz). Next, launch the smart home app and create a new Roku account, or enter the username and password for your existing account. After you sign in perform the steps below to connect your camera

Add camera in Roku Smart Home app

• Tap the plus sign from the navigation bar and select Add device
• Select Cameras & doorbells and choose Roku Battery Camera
• Connect your device to your wireless network by choosing the network and entering your Wi-Fi password
• The status light on your camera will pulse white as it connects
• Check the box on screen when you camera is connected and tap Next
• Name your camera and press Finish

With the Wi-Fi connection, your camera can record videos to the cloud with your Roku Smart Home Subscription. You also get instant recordings when motion is detected, and intelligent person, pet, and object detection. Learn more about the premiere features available with your Roku Smart Home Subscription.

Note: If the light on your Roku Battery Camera is solid yellow or off when connecting it to Wi-Fi, unplug the device and press and hold the Setup button until it starts blinking blue again. Follow the instructions within the Smart Home App to setup your device again.

Where to install your camera

• Placement: Be sure to choose a location on a flat surface or mount it in an unobstructed location.
• Temperature: The camera is designed to operate in environments between 4°F and 122°F (-20°C to 50°C). For best results, place it somewhere that stays within this range.
• Battery life: To get accurate notifications and the best battery life, choose a location that avoids direct sunlight, high traffic roads, and dense brush.
• Mounting help: For help attaching it to a wall or ceiling, check out some mounting tips for Roku Smart Home cameras.

Uses

Your camera is designed for a variety of activities that include:

• Security cam: Set your camera to record video anytime sound or motion is detected, inside or outdoors.
• Pet cam: Keep an eye on your furry friends while you are at the office.
• Wildlife cam: Set up your camera to detect motion and capture wildlife around your home.

Tips for preserving battery life

After your camera is charged, review the Quick Start Guide.

Quick Start Guide

• Roku Battery Camera (model SCB11X/SCB12R)

What do the status lights mean?

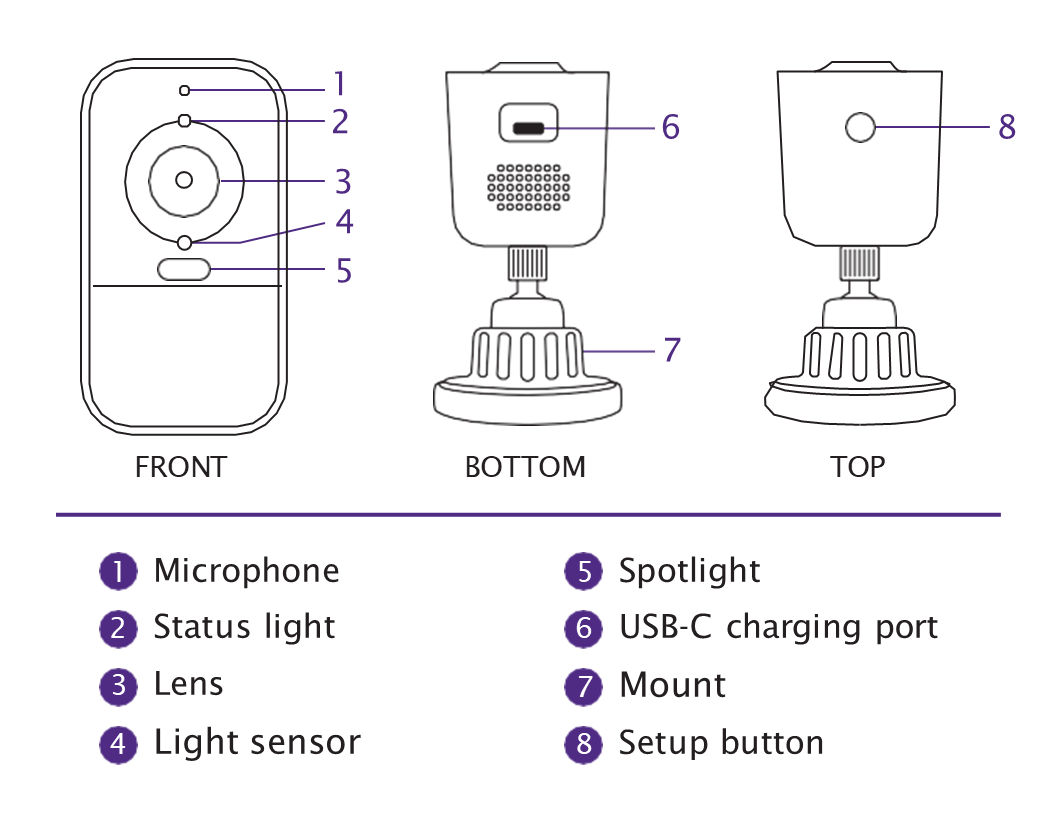

The status light is located at the front of the camera. As you proceed through the setup process, it is important to understand what each status light means.

Before set up

After set up

Using your camera

When you want to learn more, check out some of the other great features your outdoor camera offers.

• Adjust motion and sound detection settings
• Use rules to automate your smart home devices
• Set up event video recording and scheduling
• Talk and listen with two-way audio
• Use night vision
• Group and sort your smart home cameras
• Set up a Solar Panel with your Roku Outdoor Camera SE

Troubleshooting

If you experience connection issues with your camera, try the following steps:

• Charge your camera. The status light on your camera will turn solid green when it is finished charging.
• Try moving your or camera to another location to strengthen the signal and reduce interference. Learn more about troubleshooting your camera's Wi-Fi connection.
• You can factory reset your camera by pressing and holding the Setup button on the top for 10 seconds. Follow the instructions within the Smart Home App to set up your camera again.

If you experience charging issues with your Battery Camera try the following steps:

• Use a power adapter with a minimum of 5V/1amp (1000 Milliamps) output. It is suggested to use a 5V/2amp (2000 Milliamps) output for better charge time.
• If you use an adapter with lower than the suggested minimum output the camera will not charge and will not show a light at all.
• Do not use a computer/laptop USB port to charge as they may not provide enough power.
• Make sure you are using the provided USB-C to USB-A cable and make sure both ends are plugged fully into both the outlet on the camera and on the charging point.
• Try another known good power adapter with the suggested charging specifications and wall outlet if the camera is still not charging.
